BL-36 Adjustable Truss Reinforcement

Adjustable Truss Reinforcement for Composite or Cavity Walls

Product Documents

SDS Sheets

Additional information

AVAILABLE FINISHES

Hot Dip Galvanized, Mill Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel
PACKAGING

10’ (3.048 m) lengths, 25 pieces per bundle
DIMENSIONS

LENGTH: 10’ (3.048 m)
MATERIAL CONFORMANCE

ACI / ASCE 530 (Building Code Requirements for Masonry Structures), ASTM A951/A951M (Standard Specification for Steel Wire for Masonry Joint Reinforcement), CSA standard A370-14

Description

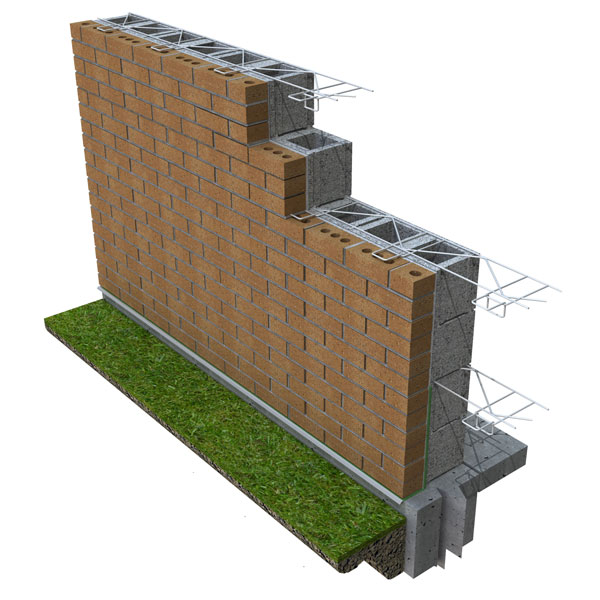

BL-36 is a truss-type masonry reinforcing for composite wall consisting of brick/block construction with box ties welded at each intersection and extending into the collar joint of a two wythe wall.

  • A 2X-HOOK™ tie is then engaged to complete the system.
  • Not recommended for use in cavity wall design.
  • All 2X-HOOK™ ties are 3/16” (4.76 mm) in diameter and should be embedded a minimum of 1 1/2” (40 mm).
NOTE:
  • Bed joint alignment for connecting wythes recommended.

Additional information

AVAILABLE FINISHES

Hot Dip Galvanized, Mill Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel
PACKAGING

10’ (3.048 m) lengths, 25 pieces per bundle
DIMENSIONS

LENGTH: 10’ (3.048 m)
MATERIAL CONFORMANCE

ACI / ASCE 530 (Building Code Requirements for Masonry Structures), ASTM A951/A951M (Standard Specification for Steel Wire for Masonry Joint Reinforcement), CSA standard A370-14
